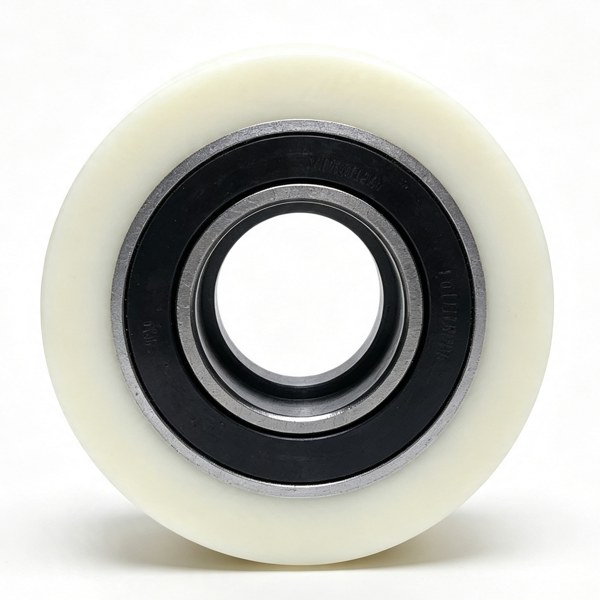

Mcnylon® (≥80 Shore D)
Mcnylon® (≥80 Shore D)
Mcnylon®: Modified MC nylon (cast nylon) for very heavy loads at low speed. Low friction and minimal rolling resistance, high compressive strength and stiffness, wear resistant and self-lubricating, resists oils and greases; hard tread for smooth rails and floors.
Typical Operating Conditions
- Typical equipment: ultra-heavy special equipment, heavy transfer cars, crane and rail carriages.
- Load and speed: ultra-heavy loads at low speed; easy pushing and low drive power.
- Environment: smooth rails or hard floors, oily conditions; hard tread, not for rough or high-impact surfaces.
Material Parameters
| Property | Test method | Unit | Typical value |
|---|---|---|---|
| Hardness | ASTM D 2240 | Shore D | ≥80 |
| Density | — | g/cm³ | 1.15–1.16 |
| Tensile strength | ASTM D 412 | MPa | 90–100 |
| Elongation at break | ASTM D 412 | % | 10–30 |
| Water absorption | — | % | 0.7–1.3 |
| Friction coefficient (no lubrication) | — | — | 0.1–0.3 |
| Continuous service temperature | — | °C | −35 to +100 |
Note: typical values measured on laboratory test specimens, for material selection only; whole-wheel performance depends on wheel diameter, tread thickness and operating conditions.
